Lightweight Power & Industrial Performance

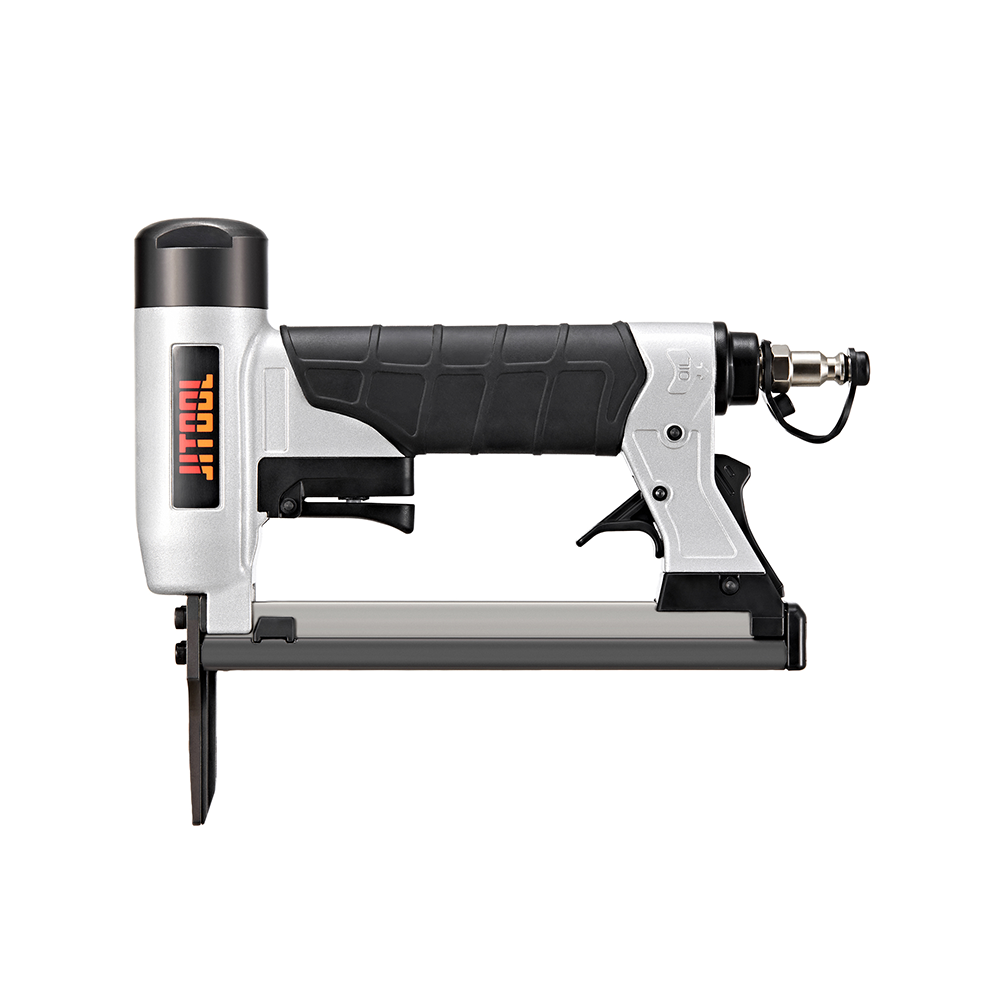

This specialty upholstery stapler delivers exceptional lightweight power and industrial performance in one compact tool. Retrofitted with an extended nose, it easily fits into hard-to-reach areas where standard staplers can’t go—making it ideal for tight corners, curves, and detailed upholstery work.
Built to handle 22-gauge, 71 Series staples (5/32″–9/16″), this tacker offers low air consumption, a long service life, and easy maintenance, providing a true cost-saving solution for busy workshops. Its ergonomic design and integrated silencer ensure operator comfort and reduced noise during operation—perfect for demanding industrial or commercial environments.
Popular Applications: Upholstery, bedding, packaging, wicker work, speaker grills, and automotive assembly.
Operating Air Pressure: 80–100 PSI.
Click here to see exploded parts diagram.
| Weight | 2.36 lbs (1.07kg) |
| Dimensions | L: 8-15/32" |
| Gauge | 22 Gauge |
| Crown | 3/8" (8.8mm) |
| Width x Thickness | .022" x .030" (0.55mm x 0.76mm) |
| Fastener Length | 5/32" - 5/8" (4mm-16mm) |
| Fasteners | BEA: 71 series Duo Fast: 3118/3100 Senco: SFW08/C Bostitch: BA T401/BA-71 UFAC Class I |
| Load Capacity | 190 |
| Air Consumption | 0.17L/cycle, 6kg/cm² |
